This year again, CMG Granulators will be at Plastics Recycling Show Europe.
The event will take place in Amsterdam on 01st and 02nd of April.
Come visit us at booth D42.
High Capacity & Heavy Duty for Post-Consumer Plastics Recycling
CMG Granulators is launching the world’s largest granulation system for post-consumer plastics recycling, with capacity 6.500 kg/h.

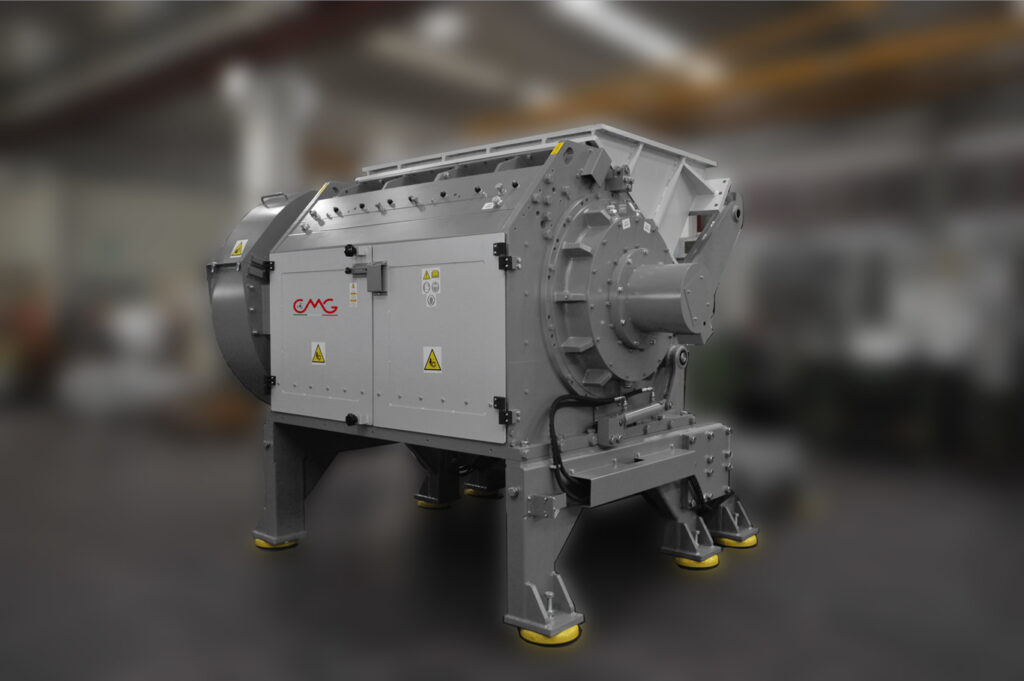

The granulator unit, model EV916, features a new state of the art cutting chamber design. Additionally, the integral evacuation system is composed of receiver cyclone with built-in dedusting chamber and air/powder automatic filtration system. Also, the dimensions of the system are outstanding: 8 meters tall, with a footprint of 3 by 8 meters.
Innovation & Performance: New cutting chamber design
CMG Granulators is introducing a brand new cutting chamber design for its Evoluzione series granulators. The new rotor configuration allows the rotor blades to cut the plastic feedstock perpendicularly against the bed blades, obtaining the highest degree of cutting penetration and precision.
The rotor blades are mounted on the edge of the rotor holding modules and not on a holding block. Not only this feature is beneficial, as the inclination of the rotor blades is very high, but it also allows easy and quick servicing/replacement of the blades, with comfortable access from the front of the machine.
The rotation of the rotor does not produce the very detrimental “drag” effect, meaning the mass of material being ground in the cutting chamber does not rotate with the rotor producing lots of dust and fine particles, that will all become waste through the washing line. The production of fine particles is reduced to few percentage points, versus a common 15% or more from conventional granulators.
Continuous Improvement & New Developments: New Evacuation & Dedusting Systems
Along with its state-of-the-art granulator design, CMG Granulators is introducing a brand-new development: the new range of evacuation, dedusting and powder containment system solutions. The unit is the largest of the category and can evacuate, convey, dedust an amount of regrind of up to 7.000 kg/h. The entire new range of the so called Regrind Evac Systems, starts at a capacity of 200 kg/h and, through a selection of 10 different sizes, reaches the impressive capacity of 7.000 kg/h. quantità di rimacinato fino a 7000 kg/h. L’intera nuova gamma chiamata Regrind Evac Systems, parte da una capacità di 200 kg/h e, attraverso una selezione di 10 diverse taglie, raggiunge l’impressionante capacità di 7000 kg/h.
Customer Service
With Headquarters, Production Site and Technical Center in Italy, and the largest distribution network in the plastics industry, CMG is active all over the world with localized technical service, spare parts and sales centers. Find the nearest CMG service center at the following link: https://www.cmg-granulators.com/en/contacts
