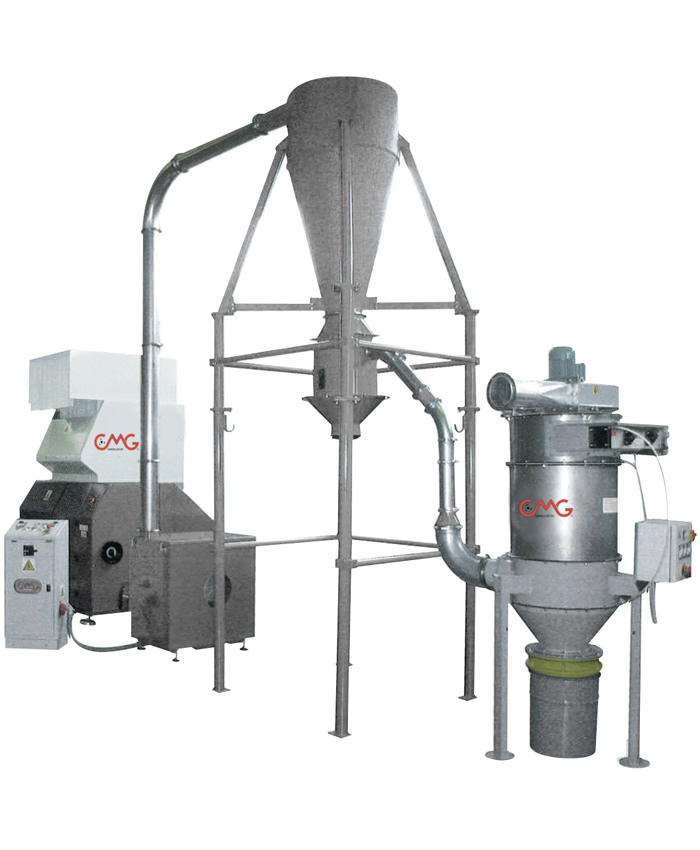

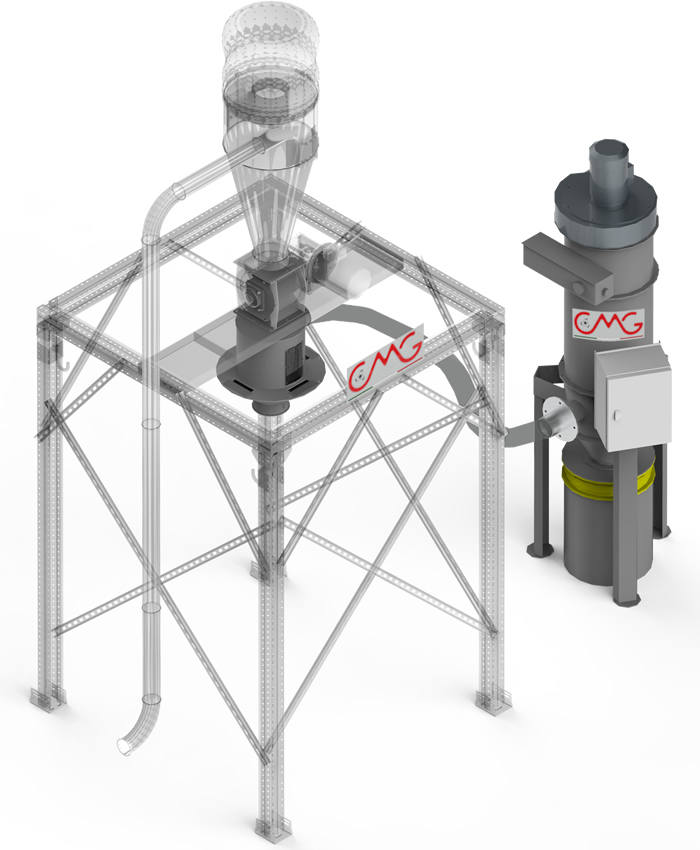

AIR FILTERING - DE DUSTING KD Series

TECHNICAL DATA

  • Designed for de-dusting of plastic regrind. Filtered, dustfree air returned to ambient atmosphere.
  • Can be floor standing or can be fitted to both new and existing granulators/shredders.
  • Five models available for a variety of applications.
  • Model KD04-S, easy to use and versatile. Features automatic cleaning cartridge filter working with negative air pressure.
  • Four models, KD04-S, KD04, KD07, KD07-S, equipped with negative air suction system and air filtration system with automatic cartridge filter.
  • Accessories: CMG’s Big-Bag supports, anti-static bars, metal separators.


Kg/H

KW

dm3
KDCA/1C 0/250 0,75 250
KD04-S 0/500 0,75 50
KD04 0/500 0,75 50
KD07 0/1000 1,1 50
KD07-S 0/2000 1,1 50
A B C D
KDCA/1C 810 1050 550 2700
KD04-S 810 750 750 2260
KD04 515 750 750 2260
KD07 695 1100 1100 2370
KD07-S 930 1100 1100 2370

APPLICATION SECTORS OF USE

termoformatura1920x1080

THERMOFORMING

estrusione1920x1080

EXTRUSION

soffiaggio1920x1080

BLOW MOULDING

iniezione1920x1080

INJECTION

riciclaggio1920x1080

RECYCLING

riduzione_dimensionale1920x1080

CABLES
